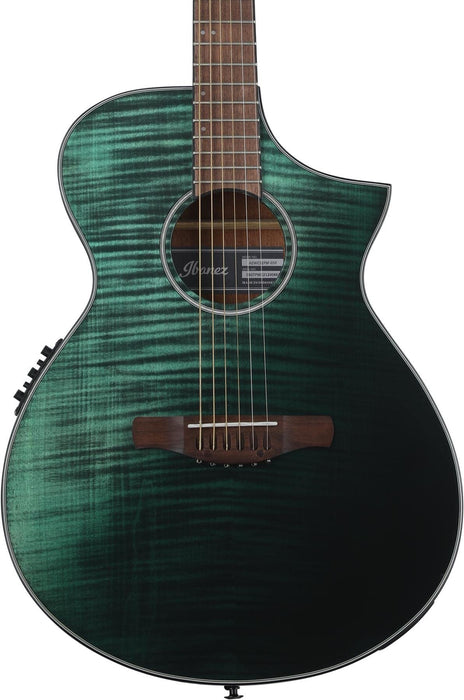

Ibanez Acoustic-Electric Guitar Specifications

Body Specifications

• Body Shape: AEWC (Acoustic Electric Wooden Construction)
• Top: Flamed Maple top
• Back & Sides: Sapele back and sides

Tonal Characteristics

• Sapele Back and Sides: Provides a full-bodied, warm mid-range with bright tonal qualities
• Flamed Maple Top: Offers a bright and tight tone with an attractive visual profile
• Rosewood Fretboard: Delivers a well-balanced solid tone with a focused mid-range

Neck Details

• Neck Material: Comfort Grip Nyatoh
• Neck Dimensions:
  • Scale Length: 634mm / 25"
  • Neck Width at Nut (a): 43mm
  • Neck Width at 14th Fret (b): 55mm
  • Neck Thickness at 1st Fret (c): 20mm
  • Neck Thickness at 7th Fret (d): 21mm

Fretboard and Frets

• Fretboard Material: Rosewood
• Inlay: Off-set white dot inlay
• Number of Frets: 20
• Fret Type: Large frets (enhancing playability for quick, successive notes)

Hardware and Electronics

• Bridge: Rosewood top loading bridge (pin-less design for easy string changing)
• Soundhole Rosette: Acrylic
• Tuning Machines: Black Die-cast tuners (18:1 gear ratio)
• Pickup: Fishman® S-Core
• Preamp: Ibanez AEQ210TF with Onboard Tuner
• Output Jack: 1/4" output

Strings

• String Type: Ibanez IACS6C
• String Gauge: .012/.016/.024/.032/.042/.053
• String Spacing: 11mm
• Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E

Key Features

1. Comfort Grip Neck: Specially contoured Nyatoh neck for superior playability
2. Onboard Tuner: Convenient digital tuner integrated into the preamp
3. Versatile Tone: Combination of Sapele and Flamed Maple creates a rich, dynamic sound
4. Easy String Changing: Top-loading rosewood bridge design

Additional Notes

The guitar is designed to offer excellent playability, versatile sound, and convenient features for musicians, balancing aesthetic appeal with functional design.
